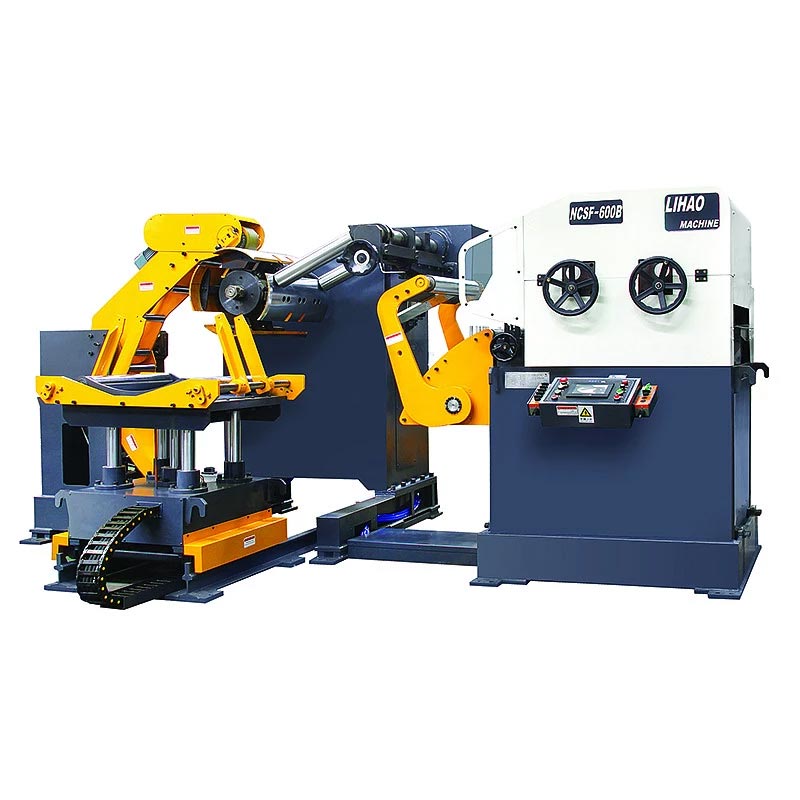

NCSF Type Straightener Feeder & Uncoiler 3 In 1 Feeder For Sheet Thickness: 1.0mm~6.0mm

3 In 1 NC Servo Straightener Feeder W/Uncoiler

Save Looping Space, Increase Safety Coiled material is from uncoiler through both left and right free guide rollers with advance photo sensors keeps looping. Through the decoiler system feeding the coiled material from down to up, passing opener device, coil tip flatness device, pinch rollers, work rollers, feed rollers to make the coiled material passing in an excellent smooth feeding

STANDARD ACCESSORY

A cluster gear set maximizes transmissions of horsepower

Outgoing catenary to assist and support the material

Feed and Straightener rolls with a hard chrome finished

Feeding line easily adjusts by advance worm gear screw jacks device

Straightener adjusts by advance worm gear screw jacks device

Left/right swing tension roll support device

Reference indicator adjsuter

Coil material entry support assembly

Straightener opener device

Hold down arm device

Electric Eye Loop Control System

Transformer

PLC Control Feeding program from mitusbishi

OPTION:

LIHAO’S coil car

Shearing device

Specification:
