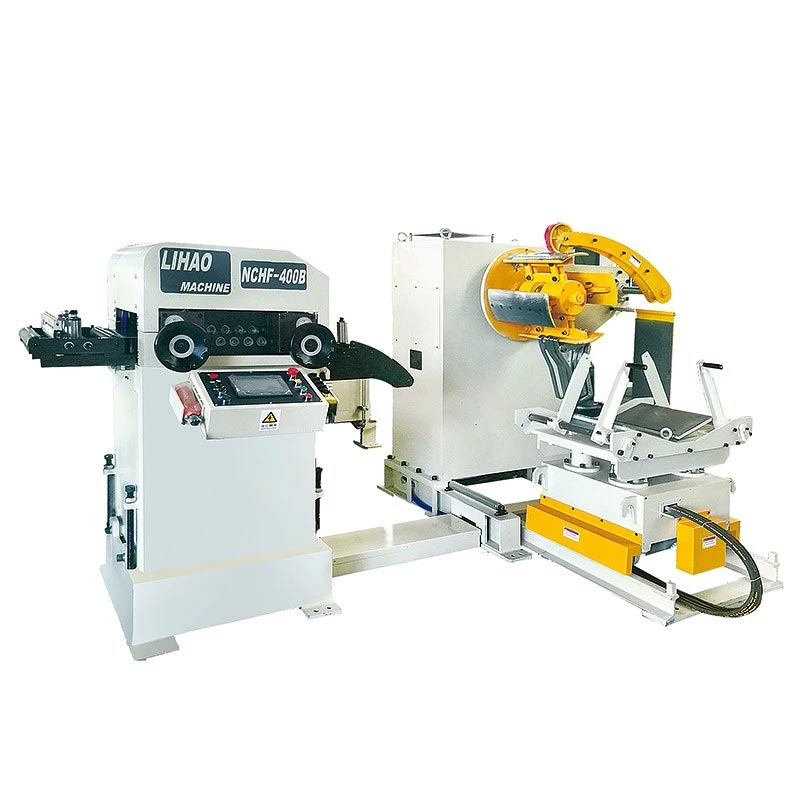

NCHF Type Straightener Feeder & Uncoiler 3 In 1 Machine For Sheet Thickness: 0.2mm~2.0mm

3 In 1 NC Servo Straightener Feeder W/Uncoiler

Save Looping Space, Increase Safety Coiled material is from uncoiler through both left and right free guide rollers with advance photo sensors keeps looping. Through the opener device and bending roller system feeding the coiled material from up to down, passing opener device, coil tip flatness device, pinch rollers, work rollers, feed rollers to make the coiled material passing in an excellent smooth feeding

STANDARD ACCESSORY:

Electric eye loop control system

Feed and straightener rolls hard chrome plated

Outgoing catenary to assist and support the material

Hold down arm device

Feeding line easily adjusted by advance worm gear screw jacks device

Uncoiler with inverter control

Reference indicator adjuster

Eccentric Roller (Upper)-easy to set up the up curve or down curve feeding exit direction

Hand-set coil width guide at outlet side

Hand-wheel-adjusted coil width guides at straightener inlet side

Threading table device

Coil tip de-bender

Uncoiler with air disc brake

A-frame type coil keeper

OPTION:

LIHAO’S coil car

Specification:
