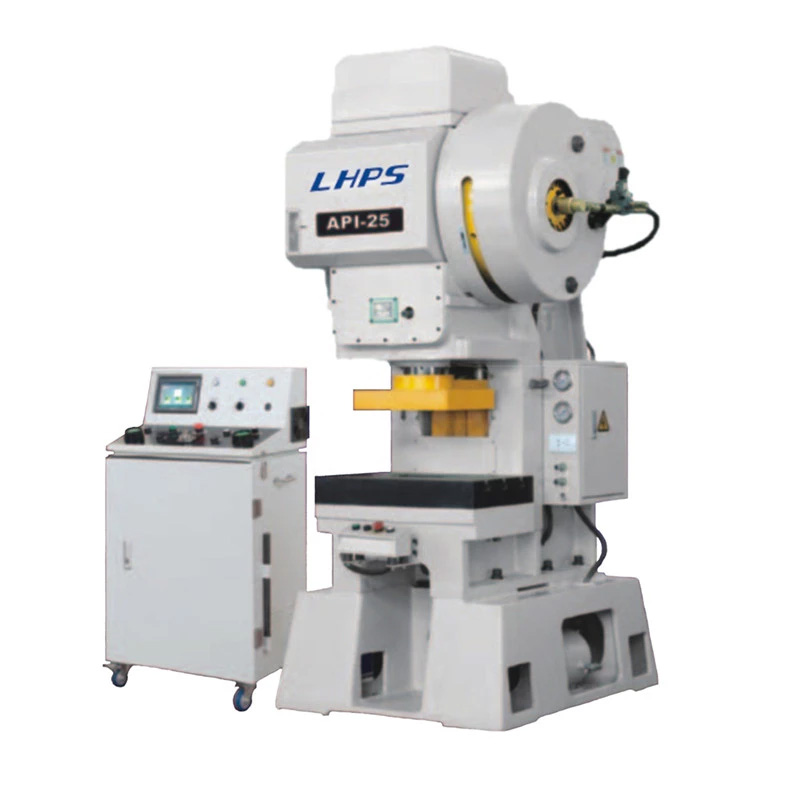

API Series High-Speed Precision Punch Machine
High speed
High precision
High quality
Descripción
Performance Feature
Adopt integrated high strength casting machine, with stress relief to guarantee long term precision.
Three circle guide pillar slider structure adopting alloy steel bush and forced lubrication so that thermal fall to the minimum while precision may reach to the maximum.
Dynamic equilibrium system is used to balance bent axles and vibration generated when slider runs control stability of the bottom dead center.
Manual molding height adjustment is equipped with molding height indicator and oil pressure clamping device.
Human computer interface(electronic cam + rotary encoder) operation is convenient and accurate.
Operating functions are integrated on LCD, displaying, engine base’s malfunction contents automatically.
Adopts highly sensitive and reliable clutch and internationally top duplex magnetic valve, to guarantee safety for the operation and stop for press rams.
With through electric loop design, they can be matched with various automatic devices to conduct a production to reduce cost, and to improve efficiency.
Technical parameters
| Name | API-25 | API-45 | API-60 | ||
| Model | A B | A B | A B | ||
| Capacity | ton | 25 | 45 | 60 | |
| Stroke | mm | 30 | 30 | 30 | |
| Stroke per minute | s.p.m | 200-600 | 200-800 | 200-500 200-700 | 200-400 200-600 |
| Die height | mm | 210 | 230 | 305 | |
| Bolster | mm | 600x300x80 | 700x415x100 | 840x470x105 | |
| Area of slide | mm | 30 | 30 | 30 | |
| Bed Opening | mm | 200x100 | 240x120 | 320x160 | |
| Motor | Kw | 3.7 | 5.5 | 7.5 | |
| Gross weight | kg | 3000 | 4500 | 8000 | |
| Lubrication | Forceful Autom acion | Standard | Standard | ||
| Speed control | Inverter | Inverter | Inverter | ||
| Clutch & brake | Air & Friction | Air & Friction | Air & Friction | ||
| Auto top stop | Standard | Standard | Standard | ||
| Vlibration system | Optional | Optional | Optional | ||
