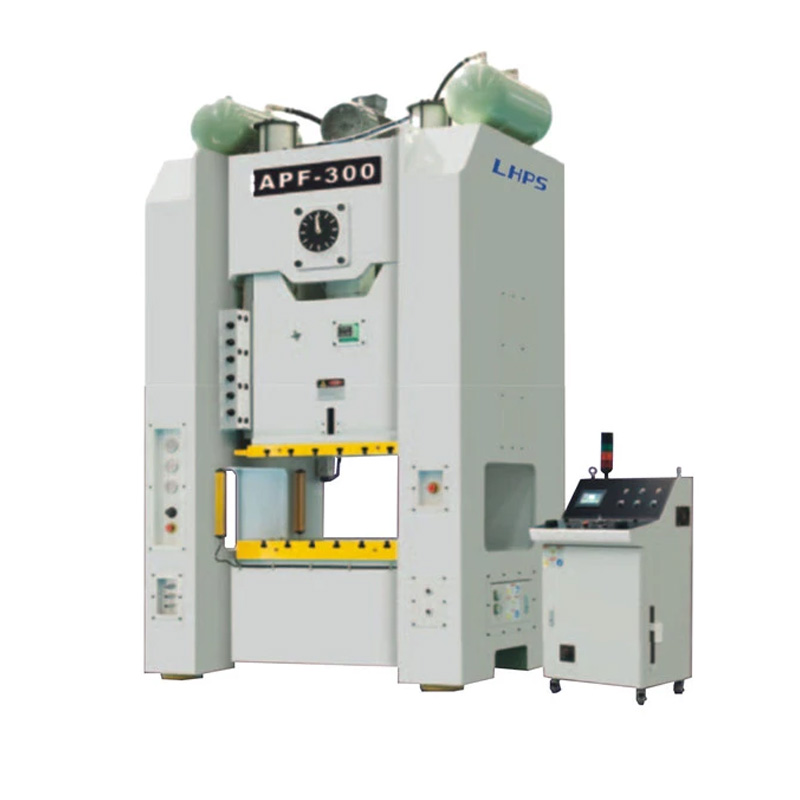

APF Series Single-Crank Precision Press Machine
Closed double-crank
High precision
High quality
Descripción
Performance Feature
Mix European, American and Japanese advanced technologies/functional structure CAE dynamic si optimization design.
High rigidity lathe bed high quality steel profiling welding or In-block casting part tempering/vibration stress processing.
High standard fabrication processing of such key parts as gears and bent axis through hard chrome plating/nitriding/grinding.
Such high level configurations as high performance controllers /drive parts /electromagnetic clutches/steam-driven elements and bearings.
Technical grade if international stamping equipment and inspection of machine index.
High memory module/individual design franchised software compilation.
High compatibility multi axial variable speed drive/automation equipment onboard expansion.
High intelligent human-computer interface/high frequency real-time control/Ethernet & USB interface.
Technical parameters
| Name | APF-110 | APF-160 | APF-200 | APF-260 | |||||
| Model | V type | H type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 110 | 160 | 200 | 260 | ||||
| Rated tonnage poin | mm | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 |
| Stroke | mm | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 |
| Speed changing | s.p.m | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 | 20-40 | 40-50 |
| Stable speed | s.p.m | 50 | 35 | 35 | 30 | ||||
| Die height | mm | 360 | 410 | 460 | 510 | 460 | 510 | 500 | 550 |
| Slide adjustment | mm | 80 | 100 | 110 | 120 | ||||
| Slide area | mm | 1000x550x70 | 1100x600x90 | 1200x650x90 | 1300x700x100 | ||||
| Bolster area | mm | 1100x600x110 | 1200x800x140 | 1300x820x160 | 1400x840x180 | ||||
| Slide opening | mm | 700x500 | 850x600 | 880x650 | 900x700 | ||||
| Main motor | kw.p | 11x4 | 15x4 | 18x4 | 22x4 | ||||
| Slide adjusting mot | kw.p | 0.4x4 | 0.75x4 | 0.75x4 | 1.5x4 | ||||
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | ||||
| Presses precision | GB/T23280-2009[JIS1] | ||||||||
| Name | APF-300 | APF-400 | APF-500 | APF-600 | |||||
| Model | V type | H type | V type | H type | V type | V type | |||
| Capacity | Ton | 300 | 400 | 500 | 600 | ||||
| Rated tonnage poin | mm | 7 | 3.5 | 9 | 4.5 | 10 | 13 | ||
| Stroke | mm | 300 | 170 | 300 | 200 | 250 | 250 | ||
| Speed changing | s.p.m | 20-40 | 35-50 | 15-25 | 20-35 | 20-30 | 15-20 | ||
| Stable speed | s.p.m | 30 | 20 | 20 | 20 | ||||
| Die height | mm | 550 | 615 | 550 | 600 | 550 | 550 | ||
| Slide adjustment | mm | 120 | 150 | 120 | 120 | ||||
| Slide area | mm | 1400x800x110 | 1500x850x110 | 1400x800 | 1400x1200 | ||||
| Bolster area | mm | 1500x950x200 | 1600x1000x200 1 | 500x100 | 1700x1300 | ||||
| Slide opening | mm | 1000x750 | 1000x750 | 900x800 | 1000x900 | ||||
| Main motor | kw.p | 30x4 | 40x4 | 55x4 | 75x4 | ||||
| Slide adjusting mot | kw.p | 1.5x4 | 2.2x4 | 3x4 | 3x4 | ||||
| Air pressure | kg/cm2 | 6 | 6 | 6 | |||||
| Presses precision | GB/T23280-2009[JIS1] | ||||||||
