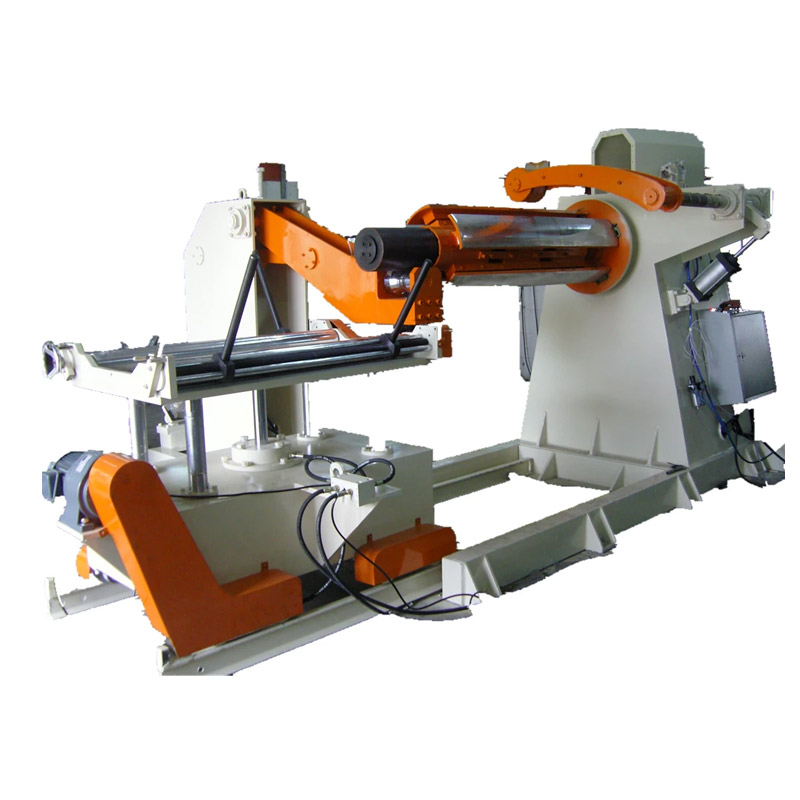

Heavy Type Uncoiler Machine
Description:
Decoiler machine capacity ranging：Maximum load weight 30ton, Maximum width 1800mm
The design of our reels incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and pull-off type reels are available, depending on the application.
Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions.
Custom engineering can be provided to meet any application demands.
Specification:
| Type | MT-1000F | MT-1300F | MT-1600F | MT-1800 |
| Max.Material.width | 1000mm | 1300mm | 1600mm | 1800mm |
| Material thickness | 0.35-1.6mm | |||
| Coil.I.Dia | 450-530mm | |||
| Coil.O.Dia | Custom | |||
| Max.weight | 10ton | 10ton | 15ton | 20ton |
Option:
Pneumatic/Hydraulic hold down arm (material thickness above 1.6mm)
Hydraulic expansion of mandrel
Coil car
AC variable speed drives
