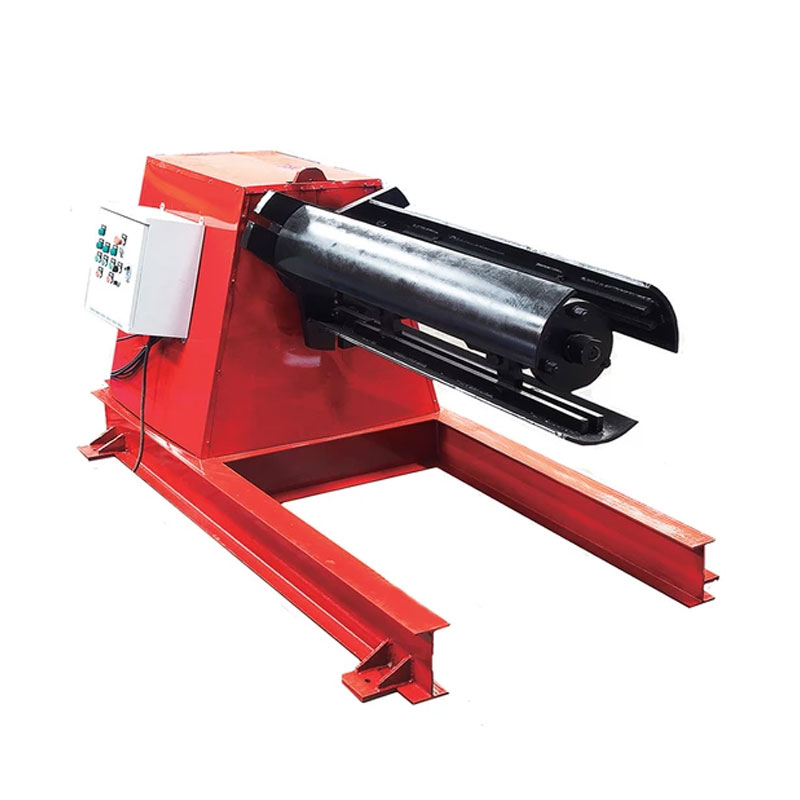

MT Type Decoiler
Hydraulic expansion of the mandrel ( for 3 ton above uncoiler )
Pneumatic coil hold down arm ( for 1.6mm above thickness )
Motorised or Non- Motorised could be option
Descripción

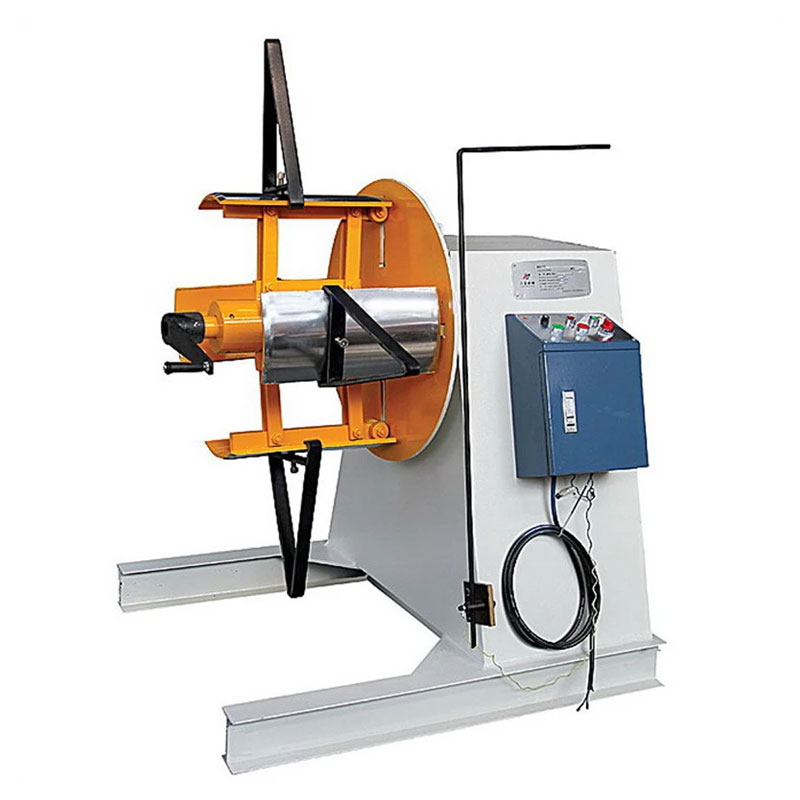

Decoiler/Uncoiler Machine
Description:
Decoiler machine capacity ranging：Maximum load weight 30ton, Maximum width 1800mm
The design of our reels incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and pull-off type reels are available, depending on the application.
Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions.
Custom engineering can be provided to meet any application demands.
Specification:
| Type | Material width (mm) | Coil.I.Dia (mm) | Coil.O.Dia (mm) | Coil Weight (kg) |
| MT-200 | 200 | 450-530 | 1200 | 500 |
| MT-300 | 300 | 450-530 | 1200 | 800 |
| MT-400 | 400 | 450-530 | 1200 | 1000 |
| MT-500 | 500 | 450-530 | 1200 | 1500 |
| MT-600 | 600 | 450-530 | 1200 | 2000 |
| MT-800 | 800 | 450-530 | 1200 | 2000 |
Standard Feature:
Motorized and Non-Motorized type of decoiler are available.
Line speed 16m/min
Loop touch stand
“A” frame coil keeper
Option:
Hydraulic expansion of the mandrel (for 3 ton above uncoiler)
Pneumatic / hydraulice coil hold down arm (for 1.6mm above thickness)
AC variable speed drives
Load coil car
