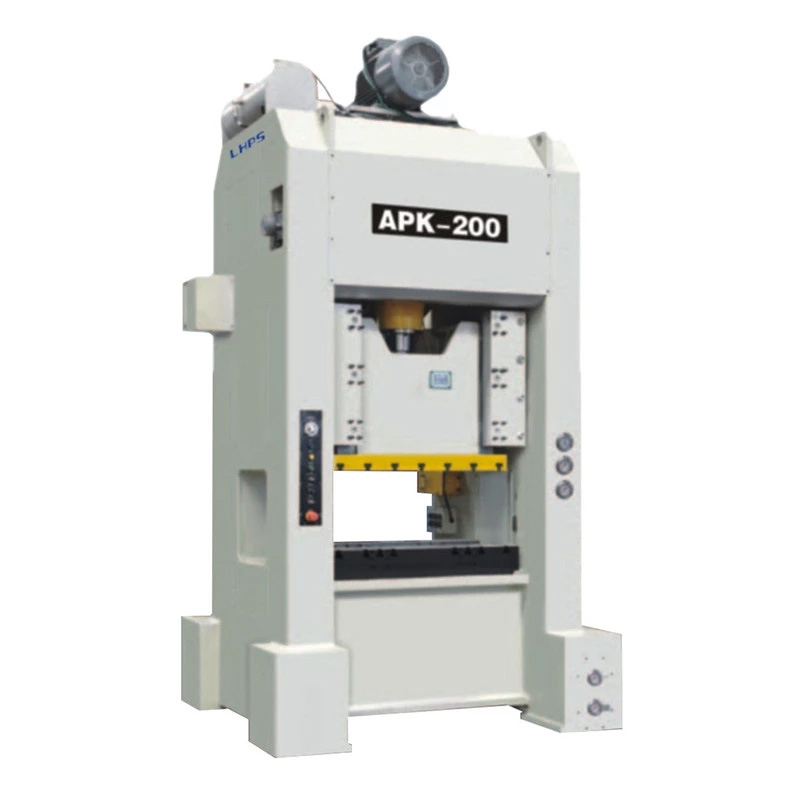

APK Series Single-Point High-Speed H-Type Press Machine
High precision
High quality
High speed
Descripción
Performance Feature
Control machine tools' actions with the use of rotary encoder and adopt human-cuomputer interface syste for the convenience of human-computer
Lock connecting rod oil pressure and enhance precison of bottom dead
With huge cost performance ,they apply to motor totor punching.
Technical parameters
| Name | APK-80 | APK-125 | APK-160 | APK-200 | ||
| Nominal force | 80 TON [800KN] | 125 TON[125kn] | 160 TON[1600kn] | 200 TON[2000kn] | ||
| Rated tonnage point | mm | 2 | 3 | 3 | 3 | |
| Stroke | mm | 30 | 20 | 30 | 30 | 30 |
| Stable speed | s.p.m | 160-280 | 160-280 | 160-240 | 160-220 | 150-200 |
| Distance between the colum | mm | 380x920 | 450x1160 | 520x1360 | 550x1320 | |
| Bolster area | mm | 900x500 | 1100x600 | 1300x700 | 1300x800 | |
| Slide area | mm | 800x450 | 1000x550 | 1200x600 | 1200x600 | |
| Material hole | mm | 700x180 | 880x150 | 1000x250 | 1000x250 | |
| Die height adjustment | mm | 310-360 | 350-400 | 350-400 | 350-400 | |
| Main motor | kw.p | 11 | 18.5 | 22 | 30 | |
| Color | kg/cm2 | Standard | Standard | Standard | Standard | |
