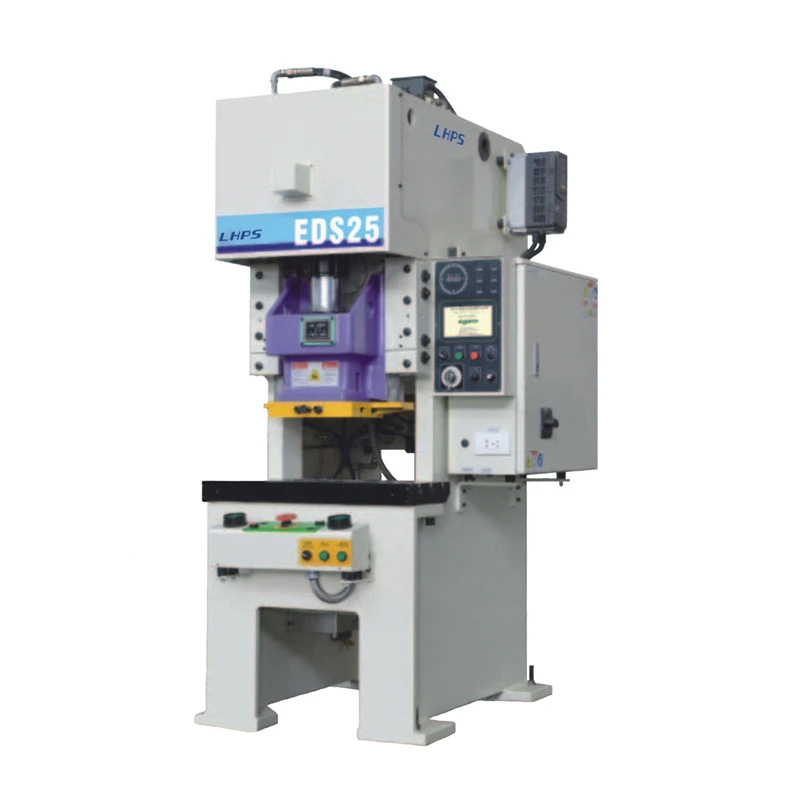

EDS Series Single Crank Post Guide Press Machine
High performacne
High quality
High power
Descripción
Performance Feature
1.Realization of high-precision processing 2.Realization of low noise
3.Realization of convenient operation. 4.Locking-type guide pillar
5.High-rigidity machine body 6.Low-comprehensive gap
Technical parameters
| Name | EDS-25 | EDS-35 | EDS-45 | EDS-60 | EDS-80 | ||||||
| Model | V type | H type | V type | H type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 25 | 35 | 45 | 60 | 80 | |||||
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 |
| Speed changing | s.p.m | 75-150 | 150-250 | 60-120 | 120-240 | 50-100 | 100-200 | 42-85 | 75-150 | 37-75 | 55-110 |
| Stable speed | s.p.m | 125 | 110 | 80 | 70 | 60 | |||||
| Stroke | mm | 80 | 30 | 80 | 40 | 100 | 50 | 120 | 90 | 130 | 100 |
| Die height | mm | 200 | 225 | 210 | 230 | 250 | 275 | 300 | 315 | 320 | 335 |
| Slide adjustment | mm | 50 | 55 | 60 | 70 | 80 | |||||
| Slide area | mm | 300 x 230 | 350 x 300 | 400 x 350 | 500 x 400 | 550x450 | |||||
| Bolster area | mm | 750x300x70 | 800x400x85 | 900x450x110 | 900x550x130 | 1000x600x140 | |||||
| Shank hole | mm | Φ38 | Φ38 | Φ38 | Φ50 | Φ50 | |||||
| Main motor | kw.p | 2.2 x 4 | 2.2x4 | 3.7x4 | 5.5x4 | 7.5x4 | |||||
| Slide adjust device | kw.p | 0.2 x 4 | 2.2x4 | 0.2x4 | 0.4x4 | 0.4x4 | |||||
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 | |||||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||||
| Die cusion | |||||||||||
| Model | _ | _ | S-240-50 | S-240-50 | S-300-70 | ||||||
| Capacity | Ton | 2.3 | 2.3 | 3.6 | |||||||
| Stroke | mm | 50 | 50 | 70 | |||||||
| Die cusion effective are | mm2 | 300 x 230 | 300 x 230 | 301 x 230 | |||||||
| Name | EDS-110 | EDS-160 | EDS-200 | EDS-260 | |||||
| Model | V type | H type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 110 | 160 | 200 | 260 | ||||
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 |
| Speed changing | s.p.m | 32-65 | 50-100 | 27-55 | 40-85 | 25-50 | 35-70 | 20-40 | 40-60 |
| Stable speed | s.p.m | 50 | 45 | 40 | 30 | ||||
| Stroke | mm | 150 | 110 | 200 | 130 | 250 | 160 | 250 | 150 |
| Die height | mm | 350 | 370 | 420 | 455 | 450 | 495 | 500 | 535 |
| Slide adjustment | mm | 100 | 100 | 120 | 120 | ||||
| Slide area | mm | 620x530 | 700x550 | 850x650 | 950x700 | ||||
| Bolster area | mm | 1150x680x150 | 1250x760x160 | 1400x840x180 | 1500x840x190 | ||||
| Shank hole | mm | Φ50 | Φ65 | Φ65 | Φ65 | ||||
| Main motor | kw.p | 11x4 | 15x4 | 18.5x4 | 22x4 | ||||
| Slide adjust device | kw.p | 0.4x4 | 0.75x4 | 0.75x4 | 1.5x4 | ||||
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | ||||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | |||||
| Die cusion | |||||||||
| Model | S-350-80 | S-400-80 | S-400-100 | S-550-100 | |||||
| Capacity | Ton | 4.7 | 6.3 | 6.3 | 11.7 | ||||
| Stroke | mm | 80 | 80 | 100 | 100 | ||||
| Die cusion effective are | mm2 | 450 x 300 | 500 x 350 | 640 x 420 | 700 x 470 | ||||
