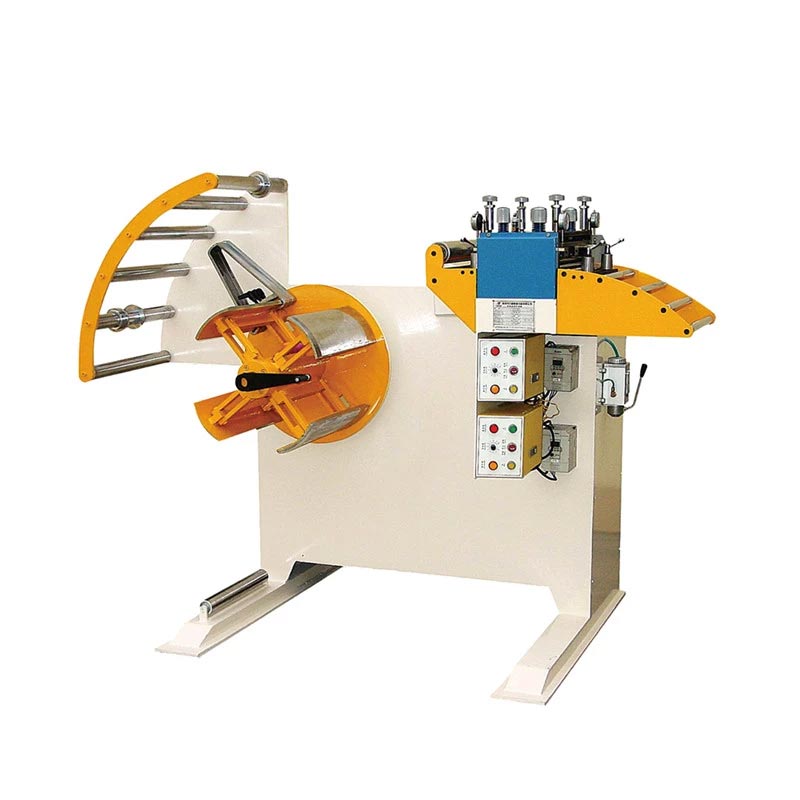

GO -B Type Straightener Cum Decoiler For Sheet Thickness: 0.1mm~0.8mm
Uncoiler/sraightener machine
Save space
High precision
Descripción
Straightener Cum Decoiler
Description :
Feature
All rollers with drive function.
The upper work rollers adopt 4 point fine micro adjusters with 0.01mm advance reference indicators. High quality precision.
All roller materials adopt bearing steel, high frequency thermal treatment to HRC 60°, hard-chrome plated and ground finished.
Japanese bearings—high precision and durable.
Leveler inclines appropriately to reduce feeding loop distance.
Compatible with other feeders.
Specification:
| Type | GO-200B | GO-300B | GO-400B | GO-500B | GO-600B |
| Max.width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Thickness | 0.1-0.8mm | ||||
| Coil.I.Dia | 450-530mm | ||||
| Coil.O.Dia | 1200mm | ||||
| Max.weight | 800kg | 1000kg | 1500kg | 1500kg | 2000kg |
| Straight Power | 1/2HP | 1HP | 2HP | 2HP | 3HP |
| UncoilPower | 1HP | 1HP | 2HP | 2HP | 3HP |
| Straight adjust | 4 point worm gear fine adjsutment | ||||
| Max.speed | 15m/min | ||||
| Expansion method | Manual | ||||
| Loop control | Touch sensor | ||||
