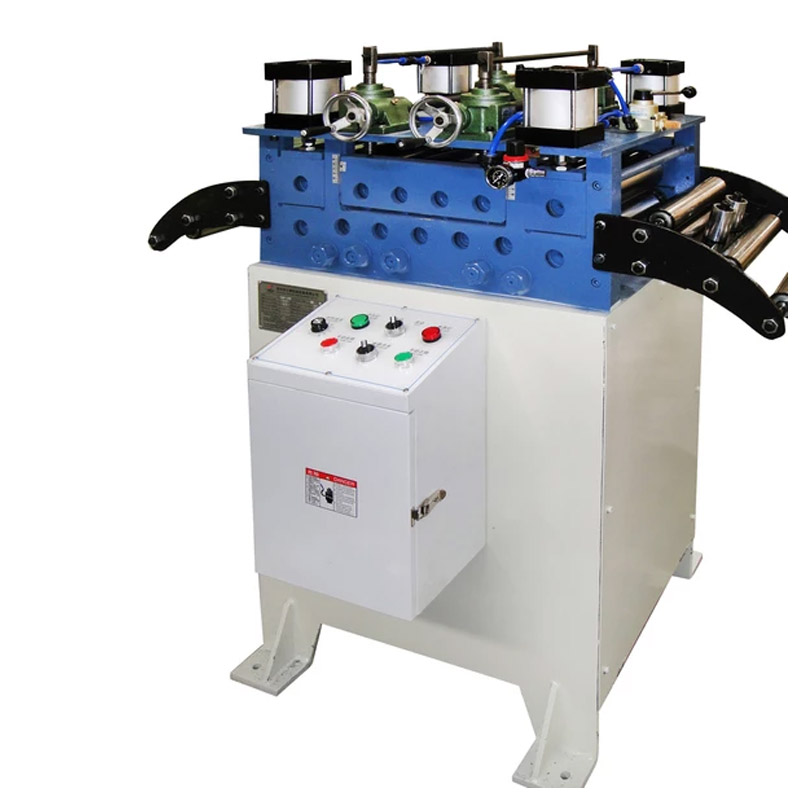

HS Type Straightener For Thick Material Sheets (Thickness: 1.6mm~6.0mm)

For different thickness material continuous punching use

Work together with uncoiler machine for automatic production

Can be customized

Descripción

Straightener for Thick Material Sheets (HS TYPE)

Description:
We are the Manufacturer and Supplier of Metal Sheet Straighteners of various dimensions. Straightener of high precision, high speed and special structure for sheet is a powerful new equipment, used in high-speed pressing. It can improve the quality and quantity of press workpieces.


Feature:

Suitable for straightening difference thicker metal sheets.

Equipped with Japanese magnetic contactor and electronic components, minimum breakdown.

Efficient automatic material feeding equipment, a dramatic increase in productivity is achieved by land up with Uncoiler ( MT-type). Double head Coil cradle (DBMT-type).

Straightening capacity is full enhanced by back-up rolls.

The rack of input and output to assist and support the material.

All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.


Specification:

TypeHS-200HS-300HS-400HS-500HS-600
Max.Material width200mm300mm400mm500mm600mm
Material thickness1.5-6.0mm
Max.Feed speed15m/min
Motor2HP3HP3HP5HP5HP

Straightening Performance

TypeHS-200HS-300HS-400HS-500HS-600
Material Thickness(mm)Material Width(mm)
3.2200300400500600
4.0200300400500600
4.5200300400400400
5.0200250300300300
6.0180180200200200
