High Speed Mechanical Roll Feeder Width:100.0mm~700.0mm Thickness:0~3.5mm

Apply CAM mechanism

Reliable and stable feeding

One year quality guarantee

Descripción

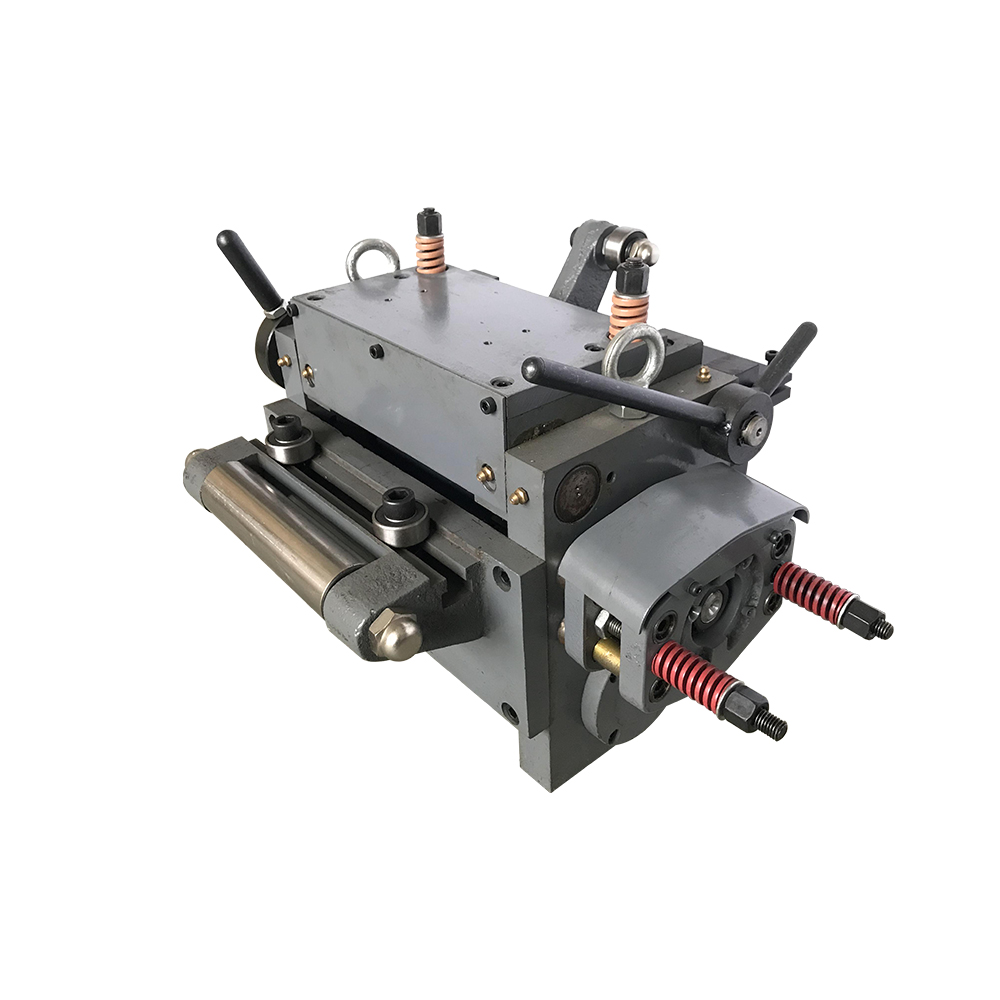

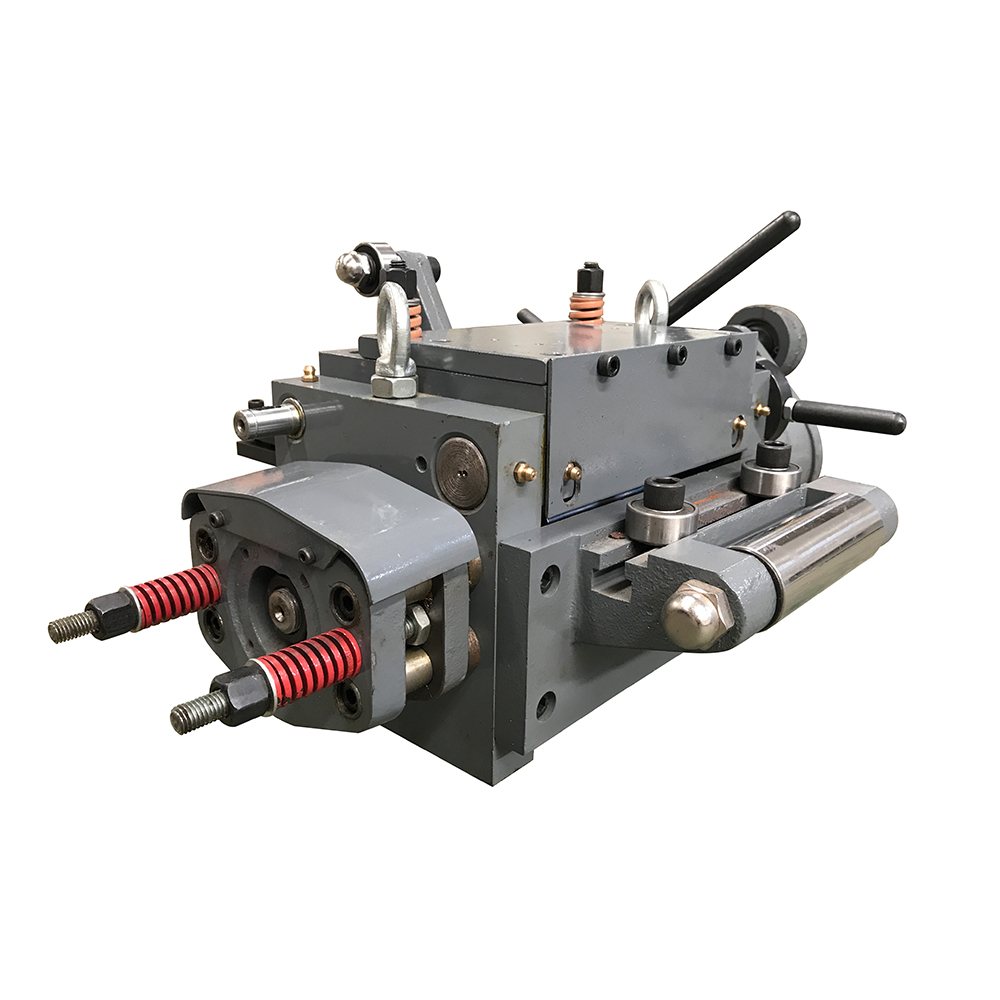

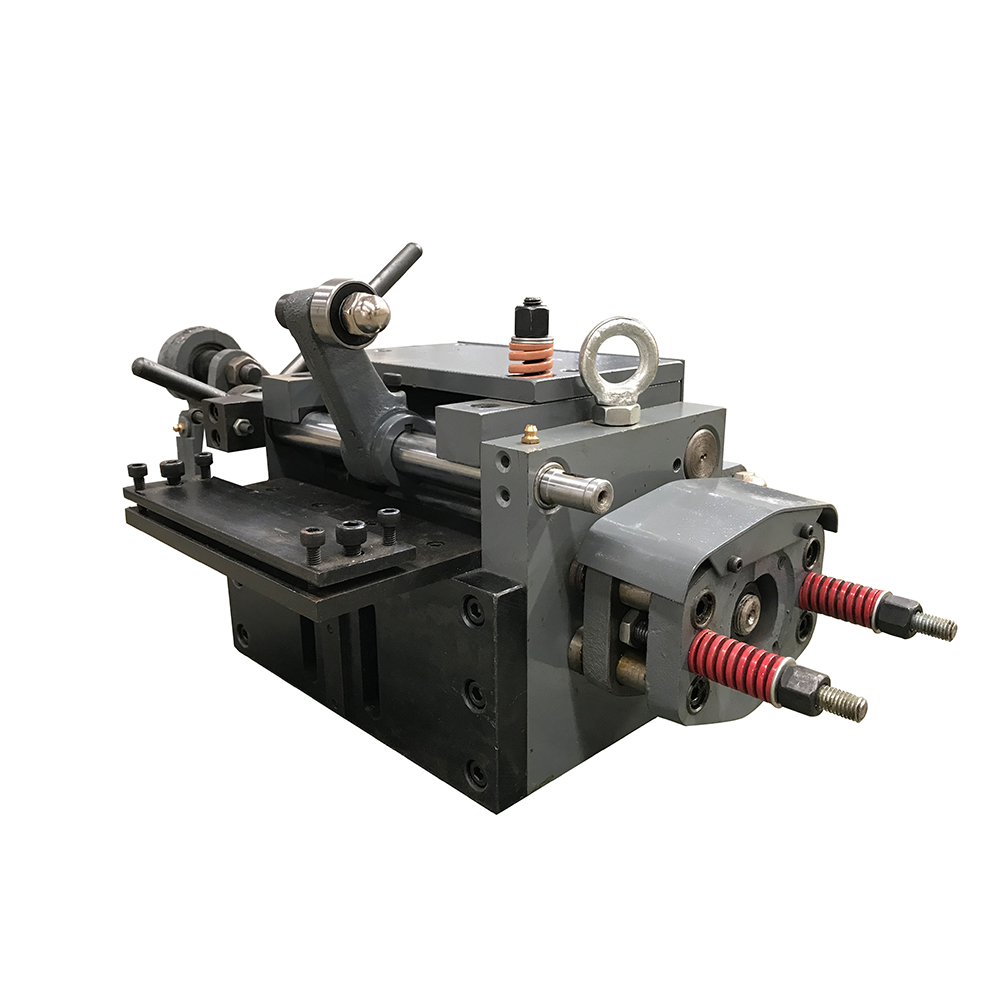

High Speed Mechanical Roll Feeder

We are the leading the manufacturer and supplier of all type of Pneumatic Feeder such as Air Feeder, NC Servo Roll Feeder, Mechanical Gripper Feeder, New Gripper Series, CAM Feeder, Industrial Pneumatic Feeder, Heavy Duty Pneumatic Feeder, Gear Change Feeder, Gripper Feeder, High Precision Feeder, Nc Servo Feeder, Servo Roll Feeder, Push And Pull Feeder, Band Feeders, Coil Feeder, Mechanical Plunger Actuated Feeder, Zig Zag Feeders, Nc Servo Zig Zag Feeder, Mechanical Roll Feeder, Die Feeder, Roll Feeder, Zig Zag Feeders, Mechanical Plunger Actuated Feeder, Feeders For Power Press, Feeding Machine, Roll Feeder, Die Feeder, Coil Feeder.

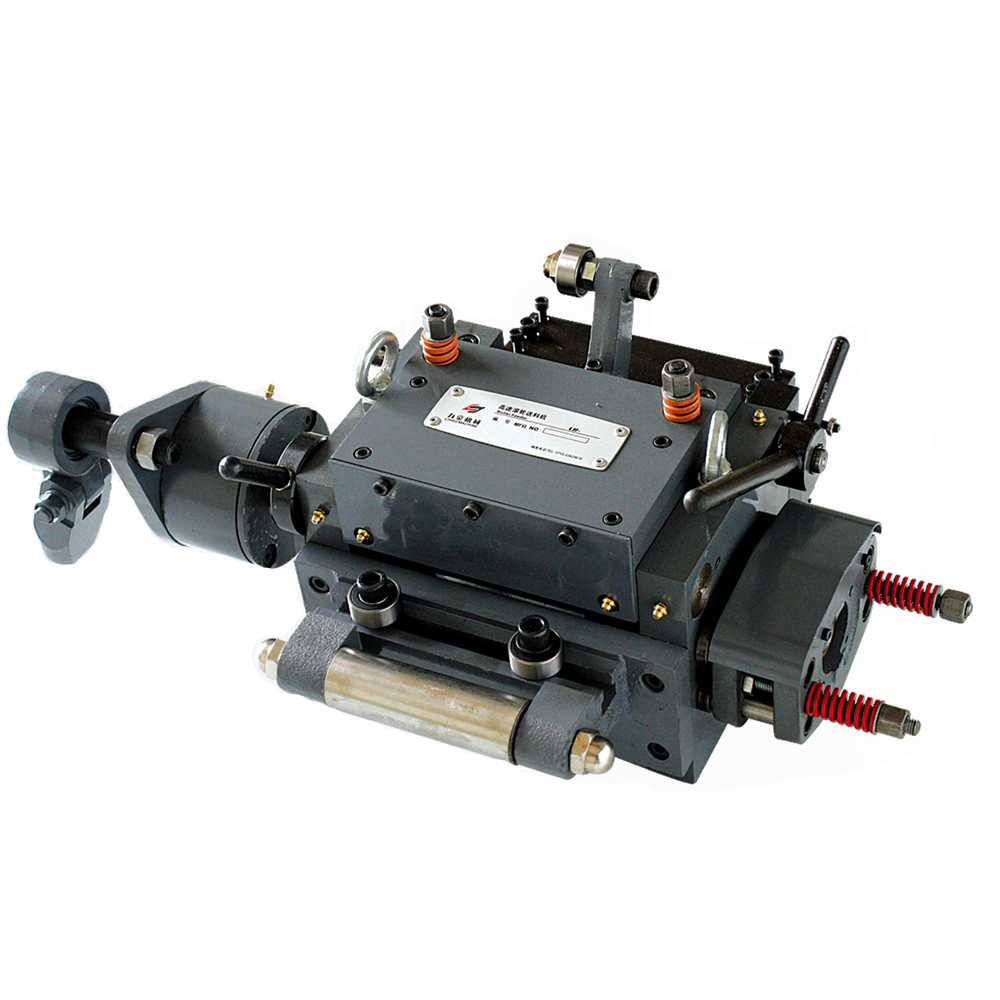

Mechanical Feeder

High speed and high precision feeding, speed up till to 600 stroke per minute.

Reliable and stable feeding.

All adjustments are easily reachable.

Compact structure, economical using.

Low malfunction, easy maintenance.


How To Select a Feeder?
Max. width of your strip in coil form ...mm
Max. stroke length of your feeding ...mm
Max. Min thickness of your strip ...mm
Max. Strokes per minute of press..


Specification:

ModelStrip Width (mm)Stroke.Max(mm)Strip Thickness (mm)Material Line Height  (mm)
LH-105NS100500-1.655-100
LH-205NS200500-1.655-100
LH-255NS250500-1.655-100
LH-305NS300500-1.655-100
LH-405NS400500-1.655-100
LH-505NS500500-1.655-100
LH-605NS600500-1.655-100
LH-138NS130800-1.660-120
LH-1310NS1301000-3.570-140
LH-2010NS2001000-3.570-140
LH-1315NS1301500-3.570-140
LH-2015NS2001500-3.570-140
LH-5010NS5001500-3.570-140
LH-6015NS6001500-3.570-140
LH-1320NS1302000-3.570-140
LH-2020NS2002000-3.570-140
LH-7020NS7002000-3.570-140
LH-7030NS7003000-3.5100-190
