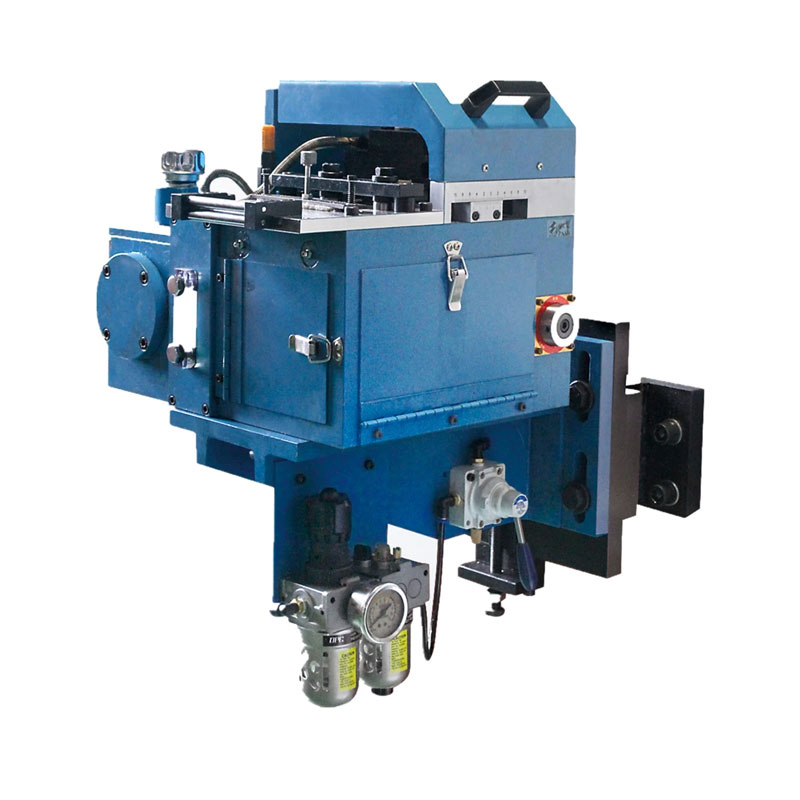

GF Type New Gripper Feeder For Sheet Thickness: 0.1~1.5mm
SPM 1200,raise production, reduced cost, improved product quality.
Scale type adjusting, easy to operation, great stability.
Integrally formed which can avoid produce resonance.
Descripción
Mechanical Gripper Feeder
I. Features
Suitable for high speed stamping and high precise feeding (Max. feeding times:1200 times/min).
Noiseless
No pressing mark on material surface
Easy to operate and working stable.
Intergra body design, eliminated resonance, guarantee feeding precision.
II. Specification
| Item | GF-906N | GF-1512N |
| Material width | 0-90 | 0-150 |
| Material thickness | 0.1-1.5 | 0.1-1.5 |
| Feeding line height | 60-120 | 60-120 |
| Feeding length | 60 | 120 |
| Feeding angle | 180° | 180° |
| Release angle | Adjustable | Adjustable |
| Feeding mechanism | Crank shaft transmission | Crank shaft transmission |
| Installation position | left | left |
| Feeding direction | Left→right | Left→right |
| Weight | 188kg | 220kg |
