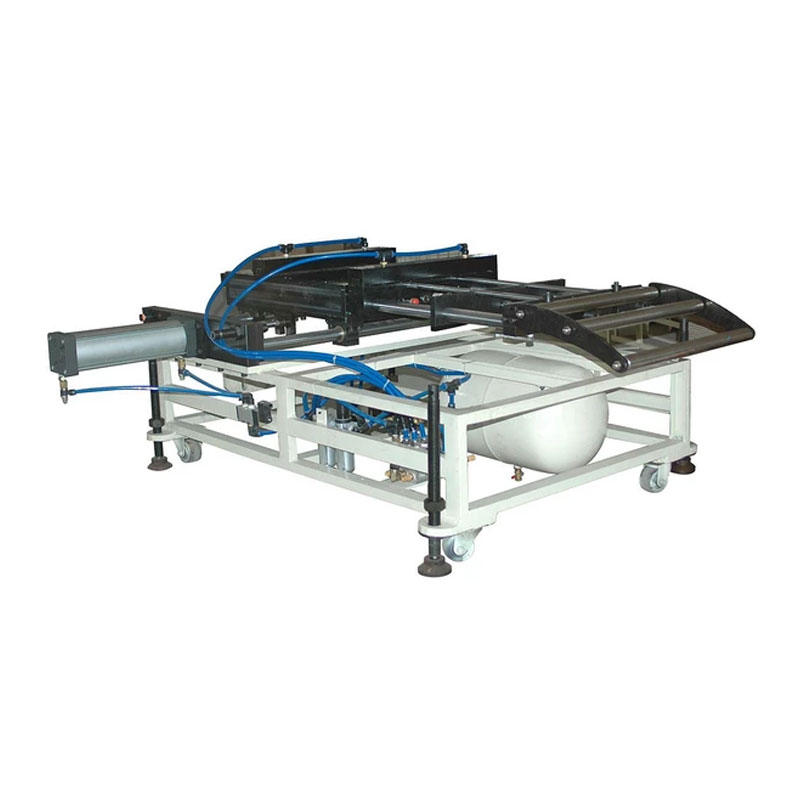

Pneumatic Feeder Air Feeder ( 8C~11C ) Width: 300.0mm~450.0mm Thickness:2.5mm~3.0mm
Rigid & Strong Structure
High Pitch Accuracy
Low Air Consumption & Inexpensive
Simple Installation
Descripción
Air Feeder
We have developed the Air feeder Series by installing a special valve that increases the feeding speed. This Air Feeder Series is specially designed for the high production of small parts, especially when long feed strokes are needed.
Versatile
Coil stock can be fed in any direction or angle at any time during the machine cycle. A single feed can push or pull through long or short progressions.
A variety of stock widths and thicknesses can be fed at different speeds and feed lengths. Two or more strips can be simultaneously fed by the same feed.
How To Select a Feeder?
Max. width of your strip in coil form ...mm
Max. stroke length of your feeding ...mm
Max. Min thickness of your strip ...mm
Max. Strokes per minute of press...
Specification:
| Type | Strip Width Max. | Stroke max. | Strip Thickness Max. | Max. Stroke/min |
| AF-8C | 300mm | 300mm | 2.5mm | 45 |
| AF-9C | 350mm | 350mm | 3.0mm | 35 |
| AF-10C | 400mm | 400mm | 3.0mm | 30 |
| AF-11C | 450mm | 450mm | 3.0mm | 25 |
Note: Floor type mounting bracket for AF-8C model above.
